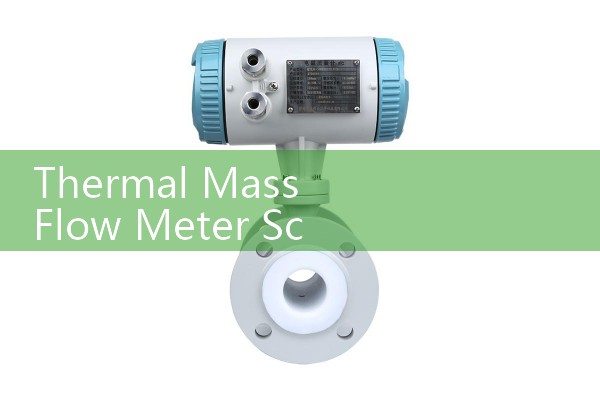

Thermal Mass Flow Meter Sccm Range Troubleshooting
Quick Answer: An sccm reading that drifts, stays stuck, or shows zero on a thermal mass flow meter almost always comes down to three things: wrong gas type setting, small back pressure in the line, or a dirty sensor. First confirm which gas the meter actually sees, then check inlet and outlet pressure. If the reading still jumps, clean the sensor and repeat the zero procedure.
We have handled dozens of sccm troubleshooting calls at Silver Automation Instruments. The patterns repeat across regions. A nitrogen generator plant in Thailand called us last month. Their meter showed 0 sccm despite a clear flow of argon. The cause was simple. The unit was still configured for nitrogen from an old test. After selecting Ar in the conversion menu, the reading matched the rotameter reference within 0.8%.
Common Sccm Range Faults You Will See in the Field
In low flow gas lines you notice specific symptoms. An sccm display that drifts upward over 30 minutes even with the valve fully closed. An output that bounces between 50 sccm and 180 sccm while the back pressure regulator barely moves. A meter that reads 12 sccm when the MFC upstream claims 20 sccm. Zero cutoff issues cause the display to sit at 0.0 even when gas is flowing gently. Sometimes the 4-20 mA signal hunts around 4.02 mA to 4.15 mA in no flow state, which triggers a PLC alarm. These are not random. They point to specific root causes.
Step 1 – Confirm Gas Type and Conversion Factor
Most engineers skip this part. They trust the model number on the nameplate. But the actual gas in the tube can be different. A biogas site in Malaysia had a meter ordered for CH4. In practice the gas was 62% CH4 with 35% CO2. The meter kept showing values 15% higher than the plant mass balance calculation. The thermal conductivity and specific heat of the real mixture shifted the sccm reading.
Check the gas selection screen on the transmitter. Silver Instruments TMF models and many other brands allow you to choose from a stored gas list. Select the single gas that matches your process. For a binary mixture such as argon CO2, you need a custom calibration. Do not guess a conversion factor from a handbook alone. Handbooks give C factors for pure gases, not for wet process streams.
Example from our service log: A dairy plant in New Zealand used a thermal mass flow meter on CO2 for blanketing. The reading at 120 sccm was off by 9% compared to a calibrated laminar flow element. After we applied the actual process gas blend with 2% residual air, the sccm error dropped below 1.5%.
Step 2 – Check the Real Operating Pressure and Temperature
An sccm unit is mass flow referenced to standard conditions, typically 0 °C and 1013 mbar. Some manufacturers use 20 °C as standard. Silver Instruments uses 0 °C for our TMF sccm range. If your process pressure is 200 mbar above ambient at the sensor inlet, the mass flow reading will report higher sccm than the actual normalized value. The error can reach 15% or more on a 1 bar gauge line if the transmitter assumes atmospheric outlet pressure.
In practice, we see this often on nitrogen purge lines in Vietnam. A 6 mm tube with 0.3 bar back pressure pushed the sccm reading from a setpoint of 30 sccm to a displayed 34 sccm. The fix was simple: measure pressure at the meter outlet using a handheld manometer and enter the value into the diagnostic menu of the transmitter. Many Silver Instruments meters let you input a fixed process pressure for density correction. For sccm ranges below 500 sccm, even a 10 mbar offset matters.
Step 3 – Inspect the Sensor for Dirt or Condensation
A thermal mass flow sensor relies on heat transfer from a heated element to the gas. Any oil mist, fine dust, or liquid droplets on the sensor surface change the heat loss rate and corrupt the sccm signal. We diagnosed a medical air line in Saudi Arabia where the meter read 8 sccm instead of the expected 25 sccm. The sensor had a thin film of compressor oil carryover. After cleaning with isopropyl alcohol and drying with pure nitrogen, the reading returned to the reference value.
Here is the thing. Many people assume the filter upstream protects the sensor. It does not catch aerosol droplets or vapour that condenses inside the sensor tube when temperature drops at night. If your sccm reading suddenly drops by 30% or more over a few hours, moisture is the prime suspect. Turn off the gas, remove the me
Step 4 – Verify the Zero Cutoff and Span
In every sccm installation, block the inlet and outlet completely with a valve. Wait for 60 seconds until the sensor temperature stabilizes. The meter should display 0.0 sccm. If it shows 2 sccm or 5 sccm, you have a zero drift issue. Perform a zero adjustment via the onboard menu or using the HART communicator. On Silver Instruments TMF transmitters, hold the zero button on the display board for 3 seconds while the flow path stays sealed.
A related problem is the low flow cutoff setting. Factory default is often 1% of full scale. On a 0 to 100 sccm sensor, that equates to 1 sccm. If your actual process runs at 0.8 sccm, the meter clips the output to zero. Many users never notice this because the display shows 0.0 and they assume the line is empty. Adjust the cutoff to 0.5% or 0.2% of the span, but only after confirming that zero stability is good below that value.
Step 5 – Electrical and Wiring Checks
A noisy 4-20 mA signal that jumps in sccm units can come from poor shielding or ground loops. In a chemical site in Brazil, the local panel used unshielded cable for a 15 meter run next to a VFD motor. The sccm signal swung between 30 and 70 sccm in a rhythm that matched the VFD frequency. Replacing the cable with shielded twisted pair and grounding only the panel side fixed it.
For RS485 Modbus meters, a missing termination resistor or a duplicate slave ID can cause data dropout and erratic sccm logs. Verify that the slave ID on the meter matches the SCADA setup. Silver Instruments ships sccm meters with ID 1 as default. If you have three meters on the same loop, change them to 1, 2, 3 before powering up.
When to Return the Meter for Factory Calibration
If you have checked gas selection, pressure, sensor condition, zero, and wiring and the sccm reading is still off by more than 2% of reading, the internal calibration constants may have drifted. We see this on meters older than 5 years or those exposed to aggressive gases like HCl vapour. Send the unit back with a note of the exact gas, the flow range in sccm, and the reference standard you used. Silver Automation Instruments calibrates thermal mass flow meters against NIST traceable reference meters with your gas or a safe simulant.
FAQ
Why does the sccm reading drift when ambient temperature changes? Thermal mass flow sensors rely on temperature difference. Large air temperature swings change the sensor body temperature and the heat loss baseline. A 10 °C ambient shift can add 1% to 2% error in sccm if the meter lacks dynamic temperature compensation. Install the meter away from direct sunlight or air conditioning vents.
Can I use a thermal mass flow meter for gas mixtures without a custom calibration? No. A mixture has thermal properties that are not a simple weighted average. Always request a factory calibration with the actual blend. For a two component mixture where the ratio stays fixed, Silver Instruments can calibrate the meter against that specific composition.
What is the difference between sccm and slm on the same meter? SCCM is standard cubic centimeters per minute. SLM is standard litres per minute. A reading of 1000 sccm equals 1 slm. The internal conversion is linear. The meter always measures mass flow and converts to volume flow at standard conditions.
My meter shows negative sccm values when no flow exists. Is the sensor damaged? Not always. Small pipe vibrations or a slight temperature difference can cause negative offset. Block the flow completely and perform a zero cut. If the negative value persists after zeroing, the sensor bridge may be unbalanced and factory service is needed.
How often should I clean the sensor in a dry air line? For clean dry instrument air below 200 sccm, cleaning every 18 months is sufficient in most regions. In high humidity coastal areas like Singapore, inspect every 12 months. A quick visual check through the flow channel is enough to decide.
