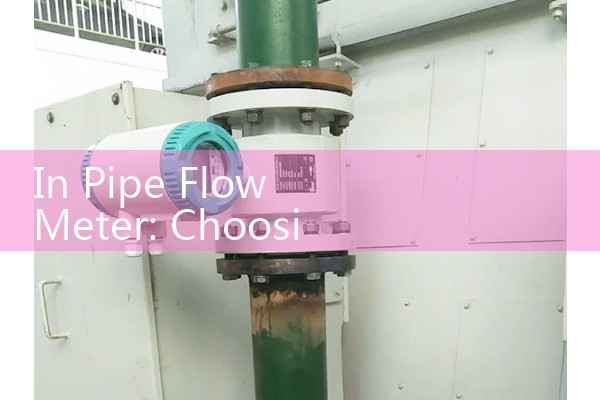

In Pipe Flow Meter: Choosing the Right In-Line Mechanical Fitting Alignment for Industrial Metal Plumbing
Quick Answer
Align the flow meter body with the pipe centerline before you tighten the bolts. Keep the gasket inner edge, the meter bore, and the flange bore concentric. On metal pipes from DN15 to DN100, a small flange offset creates a permanent inlet disturbance. That disturbance reduces repeatability on electromagnetic, vortex, Coriolis, and oval gear flow meters.
What Goes Wrong Before the First Reading
Metal plumbing hides small misalignments. A 0.8 mm step at a DN50 flange connection can trip the flow profile. This causes unstable readings on electromagnetic flow meters and noisy output from vortex flow meters. We have seen this on customer sites many times. A water distribution site in Vietnam had a DN80 electromagnetic flow meter with a 1.5 mm flange offset. The 4-20 mA HART signal swung by more than 2 percent at steady flow. After the pipe fitters realigned the flanges, the signal flattened to a 0.35 percent band.
Most engineers skip this part. They trust the gasket to center the meter. Here is the thing. The gasket cannot center the meter. If the pipe flanges are not parallel, the gasket can sit too high or too low. The bolts then load one side of the meter body. That stress transfers to the sensor tube or the liner.
Pipe Support and Mechanical Load
Install one pipe support within 300 mm of the meter body. This keeps the metal pipe weight from pulling the instrument down. On a DN100 hot water line at 110 °C, thermal expansion adds axial force. If the meter is locked between rigid supports, the body bows and the internal electrodes see a distorted flow profile. Use a flexible coupling or a thermal expansion spool when the process swings more than 50 °C. Customers in Saudi Arabia and the UAE run cooling water lines that move from 25 °C at night to 60 °C during the day. That shift is enough to change alignment if supports are set wrong.
Flange Face, Gasket, and Bolt Sequence
Check that both flange faces are flat and parallel. Use a feeler gauge between the flanges at four points before installing the meter. On DN15 to DN40 pipes, keep the gap difference below 0.3 mm. On DN50 to DN100 pipes, keep it below 0.5 mm. The gasket inner diameter must not protrude into the flow path. A protruding gasket on a DN40 oval gear flow meter for diesel creates a small jet that changes the meter factor. Last year a paint manufacturer in Southeast Asia saw a 0.7 percent meter factor shift on a DN40 oval gear flow meter for solvent batching. The cause was a protruding gasket edge.
Bolt sequence matters more than many fitters admit. Tighten in a cross pattern. Use three passes at 30 percent, 60 percent, and full torque. This prevents gasket creep and keeps the meter body centered. If you send us your pipe size, pressure, temperature, flow range, and process fluid, we can recommend the right gasket material and torque range for the meter type.
Simple Alignment Checks on Site
Use a straight edge across the flange edges. On a DN50 line, a 1 mm step is visible with a small LED light behind the straight edge. A dial indicator can measure the flange face runout. Pump the pipe circuit once before installing the meter to release initial stress. Then install the meter and hand tighten all bolts. Rotate the meter body or tube to check clearance. If the meter body touches the pipe or the support before the bolts seat, something is out of alignment.
In practice, we recommend a wet test with a bucket or a flow standard for small lines. For larger lines, compare the meter output with a clamp
Alignment for Corrosive and High Purity Lines
Chemical and food plants need more care. A lined electromagnetic flow meter with PTFE liner can crack if the flange load is uneven. A dairy plant in New Zealand had a DN25 flow meter with a PTFE liner. The liner cracked because one bolt was torqued to 2 times the others. The meter worked for 9 days then started leaking. Replacing the meter solved the leak, but the real fix was setting the bolt loads evenly.
Seawater desalination plants in Oman and Chile often use electromagnetic flow meters with Hastelloy electrodes. Seawater conductivity is high, often above 40,000 µS/cm, so the meter reads well if the flow profile is stable. But a misalignment before the inlet changes the velocity distribution. The reading then has a slight negative bias at low flow. That bias looks like an instrument fault but it is mechanical.
How to Apply This to Your Flow Meter Selection
Do not select a flow meter based on pipe size alone. Send us the following data:
Pipe size in DN
Fluid type and conductivity if water based
Pressure in bar
Temperature in °C
Flow range in kg/h, m3/h, or L/h
Installation location and available straight pipe length
For gas or steam on metal pipes, a vortex flow meter fits well when the pipe is aligned and the upstream run is 15 DN to 20 DN. For conductive liquids with 20 µS/cm or higher, an electromagnetic flow meter works well. For high accuracy mass flow, a Coriolis mass flow meter is the right choice if the pipe support and alignment are solid. For diesel or lubricating oil, an oval gear flow meter gives a direct volume reading and is less sensitive to inlet swirl but still needs proper flange alignment.
For loops that need a complete record, pair the flow meter with a paperless recorder and a pressure transmitter from Silver Automation Instruments. The recorder samples the 4-20 mA HART signal and shows mechanical drift as a trend.
Silver Automation Instruments supplies these meter types for industrial metal plumbing systems. Contact us for a quote or a technical review.
Tel: +86-25-68650347
Whatsapp: +86-25-52155837
WeChat: +86 15365082610
FAQ
Does a flow meter need perfect pipe alignment on a DN15 line?
Perfect alignment is not always possible, but the error should stay below 0.3 mm on small pipes. At DN15, a small step has a larger relative effect than on a DN100 line.
Can a flexible rubber gasket fix flange misalignment?
No. A rubber gasket can seal a small gap, but it cannot center the meter. The meter body will still see uneven stress and the flow profile can change.
What is the minimum straight pipe run for an in-line flow meter?
It depends on the meter type. For an electromagnetic flow meter, use 5 DN upstream and 2 DN downstream if the pipe is aligned and the flow is fully developed. For a vortex flow meter, use 15 DN to 20 DN upstream after a valve or elbow.
How do I know if my misalignment is causing a reading error?
Look for unstable output at steady flow, a slow drift after installation, or a bias that changes when the pipe heats up. Compare the meter with a clamp-on ultrasonic flow meter on the same line.
Can Silver Automation Instruments help me select a flow meter for a specific pipe alignment problem?
Yes. Send us your pipe size in DN, process fluid, pressure in bar, temperature in °C, and flow range. We will recommend a meter type and a mechanical fitting arrangement.
