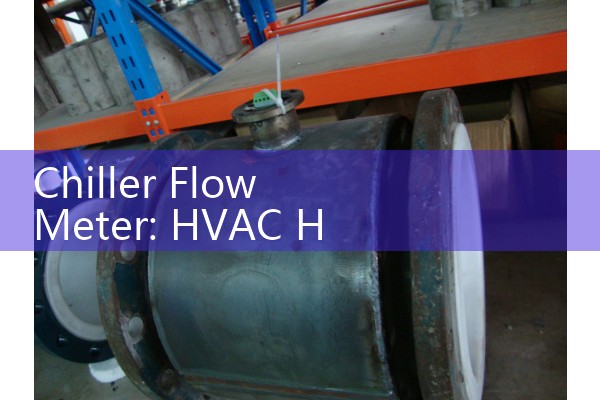

Magnetic Water Flow Meter Options for Public Utilities
Quick Answer: Magnetic flow meters, also known as electromagnetic flow meters, handle raw water, drinking water, and wastewater with no moving parts and zero head loss. For public utility networks, the key choices boil down to liner material, electrode type, AC or battery power, and whether you need a flanged, wafer, or insertion body. Silver Instruments stocks meters from DN6 to DN2000 and configures electrodes in 316L, Hastelloy C, or titanium for different water chemistries.
Why Electromagnetic Meters Dominate Water Utility Billing
Water authorities in the Philippines, Malaysia, and Chile pick magnetic flow meters for custody transfer and district metering. The measurement principle relies on Faraday law. Water must have a minimum conductivity of 5 µS/cm. Clean river water, groundwater, and treated effluent all meet that threshold. Magmeters deliver accuracy of ±0.5% of reading or better, which directly improves billing revenue when you replace aging mechanical meters. A municipal water board in South Africa reported a 7% increase in metered volume simply by switching from turbine meters to electromagnetic flow meters on DN150 and DN200 distribution lines.
Because there are no impellers or electrodes in the flow stream that can snag debris, maintenance crews spend less time cleaning strainers. The full-bore design also handles bidirectional flow. This feature matters when a water network repurposes a distribution main for temporary backfeed.
Liner and Electrode Combinations for Different Water Types
Soft water with low chlorides works well with hard rubber liners and 316L stainless steel electrodes. Hard rubber costs less and resists abrasion from silt. For chlorinated drinking water, we often supply PTFE or EPDM liners. PTFE offers the widest chemical compatibility and tolerates high temperatures up to 130 °C. EPDM seals well in cold water and accommodates frequent thermal cycling. Wastewater with hydrogen sulfide or acidic conditions demands a Hastelloy C electrode. In one project for a sewage treatment plant in Vietnam, the operator switched to Hastelloy C electrodes on the raw sewage inlet meters after pitting failures on 316L electrodes within 18 months. For seawater or high-salinity brackish water near desalination plants, choose titanium electrodes and a PTFE liner. Silver Instruments configures each meter to match the exact water analysis you provide.
Flanged, Wafer, and Insertion Installations
Public utility pipelines run from DN50 distribution laterals to DN2000 trunk mains. Flanged magmeters suit permanent, buried vault installations. They ship with carbon steel or stainless steel flanges rated to PN10, PN16, or ASME 150. Wafer-style meters fit between flanges and save space inside cramped pump stations. Insertion electromagnetic flow meters work best for large-diameter pipes above DN400 where a hot-tap installation under pressure avoids network shutdown. Last year a water operator in Peru installed an insertion magmeter on a DN900 concrete line while the main stayed live. The insertion probe with built-in pressure sensor gave them flow data and line pressure in one device, reducing the need for separate pressure transmitters. In practice, most utility engineers prefer flanged meters up to DN600 and then switch to insertion probes. But the exact breakpoint depends on your budget and whether you can allow a brief shutdown.
Power Supply and Remote Monitoring
Urban pumping stations have 220 V AC or 24 V DC supply. Here a standard AC-powered magnetic flow meter with 4-20 mA, pulse, and RS485 Modbus RTU outputs ties easily into a SCADA system. For district metering areas in rural water supply, battery-powered magnetic flow meters remove the cost of trenching and electrical panels. Sil
Grounding and Earthing Rings for Plastic or Lined Pipes
Electromagnetic flow meters require a reliable ground reference. Metal pipes provide that naturally. PVC, HDPE, or cement-lined pipes need grounding rings or grounding electrodes. The meter body includes a third electrode for grounding in some models. If your distribution network relies on plastic pipes, specify the meter with built-in grounding electrodes. That avoids extra installation steps and reduces leak points. A recent upgrade at a borehole water supply in Indonesia used HDPE pipes. The contract included flanged magmeters with titanium grounding rings and third-electrode PTFE-lined sensors. The installation team needed no external grounding straps. This detail saves about 40 minutes per meter during commissioning, which adds up on a 60-meter deployment.
Silver Instruments Models That Match Utility Budgets
Our SIL-E electromagnetic flow meter series covers all these options. The SIL-E compact flanged meter runs from DN6 to DN800 with hard rubber, PTFE, or EPDM liners. Electrode materials span 316L, Hastelloy C, tantalum, and titanium. Output options include 4-20 mA HART, Modbus, and Profibus DP. The SIL-E insertion meter handles pipe sizes from DN400 to DN2000 and ships with a ball valve assembly for hot-tap installation. We also offer the SIL-E battery-powered model with NB-IoT or LoRaWAN for remote sites. Every meter gets a factory calibration with water as the medium, traceable to national standards. You get a calibration certificate with the order.
FAQ
What water conductivity do I need for a magnetic flow meter? A minimum of 5 µS/cm. Most source waters, from river water to treated drinking water, exceed 100 µS/cm. Deionized water requires a different measurement technology.
Can I install a magnetic flow meter in a partially full pipe? A standard magmeter needs a full pipe to measure accurately. For partially filled sewers, a dedicated open-channel flow meter with an ultrasonic level sensor works better. We supply both types.
How long does a battery-powered magmeter last in the field? Depending on measurement interval, 3 to 5 years. A lithium pack running one measurement every 15 seconds lasts about 3 years. Replace the pack without removing the meter from the process pipe.
Do magnetic flow meters require periodic recalibration? In drinking water networks, an electromagnetic flow meter typically holds its calibration for 2 to 4 years if the liner and electrodes remain intact. Municipal regulations might specify a mandatory verification interval. Silver Instruments offers on-site verification with a portable calibrator for large diameters.
What communication options do your meters offer for SCADA or AMI? Wired outputs: 4-20 mA, pulse, relay, and Modbus RTU. Wireless options: NB-IoT, LoRaWAN, and GPRS. The meter transmits flow rate, total volume, and alarms. We pre-configure registers and data strings before shipping so that integration into existing SCADA takes less than a day.
Send us your water analysis, pipe size (DN), operating pressure, temperature, and preferred communication protocol. Our engineers will propose a magnetic flow meter configuration with a quote and lead time. Reach us at [email protected] or call the number listed on flow-meter.com.au.
