A Flow Meter Measures: Fundamental Principles of Liquid and Vapor Tracking

Quick Answer: A flow meter measures volumetric or mass flow for liquids, gases, and vapor. The correct model depends on fluid phase, conductivity, pipe size, pressure, and temperature. Silver Automation Instruments supplies factory direct meters with selection support, price quotes, and after-sales service.

What a Flow Meter Actually Measures

Liquid and vapor tracking starts with the correct measurement principle. A flow meter gives a live value in volume per time or mass per time. Common units are liters per minute, cubic meters per hour, kg/h, and tons per hour. For steam and vapor, mass flow matters more than volume because density changes with temperature and pressure.

In practice, most engineers focus on repeatability, straight run, and output signal. A meter that cannot handle wet steam at startup or a slug of air creates false readings. Output options include 4-20 mA HART, pulse, and Modbus for a PLC or a paperless recorder.

Liquid Flow Measurement Basics

For conductive liquids like water, wastewater, CIP return, and chemicals above 20 µS/cm, an electromagnetic flow meter works well. Common sizes go from DN15 to DN300. Select a PTFE or rubber liner based on chemical compatibility and temperature.

For diesel, lube oil, palm oil, or molasses, an oval gear flow meter for diesel gives strong batch accuracy. A paint manufacturer in Southeast Asia uses an oval gear meter to dose solvent into mixing tanks. The meter totalizes each batch and triggers a valve at the final count.

For low conductivity fluids or liquids with high solids, a Coriolis mass flow meter reports mass flow, density, and temperature in one device. This type handles food syrup, liquid chocolate, and adhesives. A food plant in Vietnam uses a Coriolis meter for chocolate syrup and detects air slugs through the density signal.

Vapor and Steam Flow Tracking

For saturated steam, superheated steam, and compressed air, a vortex flow meter measures flow through a bluff body and shed frequency. Add a pressure transmitter and a PT100 temperature sensor for mass flow compensation in kg/h.

Here is the thing. A vortex meter without pressure and temperature compensation is only a velocity meter. It will not give true mass flow when steam pressure changes. Use a multivariable vortex meter or add external sensors.

In a desalination plant in the Middle East, a seawater flow meter for desalination plant duty is often an electromagnetic meter on the reject line. For boiler steam, a vortex meter with an integrated temperature sensor and pressure tap gives stable readings during load swings.

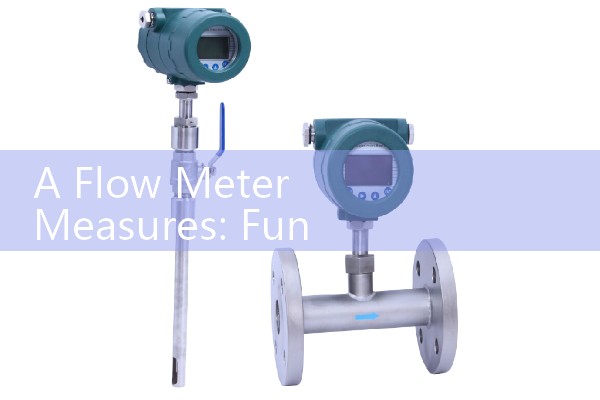

For biogas or flare gas with changing composition, a thermal mass flow meter gives direct mass flow without a separate pressure sensor. We have seen this on customer sites many times. One customer in Nigeria uses a thermal mass flow meter for biogas from a digester line.

Ultrasonic Flow Meter for Large Pipes and Retrofit Jobs

For large water mains or jobs where pipe cutting is expensive, an ultr

Key Parameters That Affect Accuracy

Buyers should send real process data, not just the pipe size. A flow meter measures correctly only when the vendor knows the fluid, viscosity in cP, conductivity in µS/cm, flow range, and back pressure.

Most engineers skip this part. But viscosity below 5 cP and viscosity above 100 cP change the meter choice. For diesel at 3 cP, an oval gear meter works. For heavy fuel oil at 200 cP, a larger oval gear meter with a heating jacket may be needed.

Recommended Flow Meter Types by Fluid and Industry

Water and wastewater plants usually select an electromagnetic flow meter. Steam lines and compressed air systems work well with a vortex flow meter. For diesel and fuel oil batching, an oval gear meter is the simplest reliable option. Food and chemical batches often need a Coriolis mass flow meter. Large water mains can use a clamp-on ultrasonic flow meter. Biogas and stack gas lines typically use a thermal mass flow meter.

How to Specify a Flow Meter Without Guesswork

So a clear RFQ avoids back and forth. State the fluid name, phase, minimum and maximum flow rate, pipe size, design pressure, design temperature, and required output. If the area is hazardous, specify ATEX Zone 1 or Zone 2. Silver Automation Instruments can match the right model from our range.

FAQ: Five Questions Engineers Ask Before Buying

Question 1. What is the difference between volumetric flow and mass flow?
A volumetric meter shows volume per time. A mass flow meter shows kg/h or tons per hour. For steam, gas, and many chemical reactions, mass flow is the better basis because density changes.

Question 2. What flow meter works for steam?
A vortex flow meter with pressure and temperature compensation is the standard choice for saturated and superheated steam. The output can be 4-20 mA HART for flow, pressure, and temperature.

Question 3. Can one meter measure both liquid and vapor?
In most cases, no. Liquid and vapor have different density ranges and phase behavior. Choose separate meters or use a Coriolis meter if the fluid phase stays stable and mass flow is needed.

Question 4. What data do you need to quote a flow meter?
Send fluid type, flow range, pipe size, pressure, temperature, conductivity, and viscosity. Also note the output signal and any hazardous area class.

Question 5. Do you supply ATEX Zone 1 flow meters?
Yes. Silver Automation Instruments can provide ATEX Zone 1 and Zone 2 options for vortex, thermal mass, and Coriolis meters. Send your gas group and temperature class for a confirmed quote.
