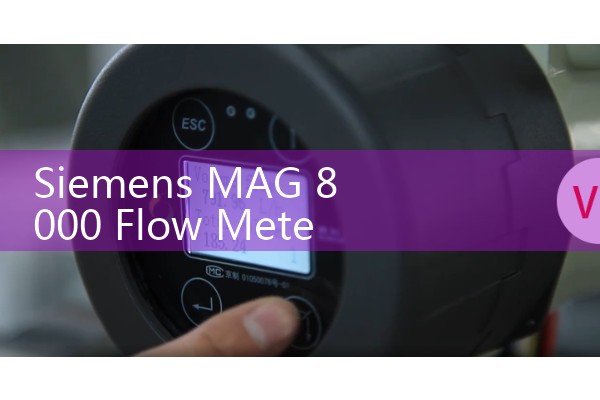

Siemens MAG 8000 Flow Meter Installation and Battery Optimization
Quick Answer: Use the correct grounding rings and a straight inlet run of at least 5xDN to avoid measurement drift on the MAG 8000. Switch the measurement interval from 1 second to 30 seconds and you can push battery life beyond 6 years. If you log data every second, an external power supply is mandatory.
Understanding the MAG 8000 Battery Concept
The Siemens MAG 8000 is a battery operated electromagnetic flow meter built for remote water and wastewater applications. Unlike loop powered meters, it uses an internal lithium thionyl chloride D cell pack with a nominal capacity of 19 Ah. The battery powers both the sensor excitation and the electronics. In most submersible installations, the IP68 rated enclosure protects the batteries up to a depth of 10 meters.
Sensor Installation: Grounding and Straight Pipe Requirements
Bad grounding is the top cause of unstable readings on any magmeter. For the MAG 8000, you must install grounding rings if you connect to plastic or internally lined pipes. Metal pipes require a direct ground connection from the meter body to the pipe flange. Most engineers skip the grounding check and then see a 15 percent error drift in readings below 50 µS/cm. Always aim for 5xDN upstream and 3xDN downstream straight pipe. In a tight pump station, we have seen 3xDN work if you reduce flow velocity to under 2 m/s, but never go below that.
Battery Optimization: Configuration Settings That Save Power
The MAG 8000 lets you adjust excitation frequency, measurement cycle, and data logging interval. Here is the thing. A measurement interval of 1 second drains the battery in 4 to 5 months. Switch it to 15 seconds and the battery lasts 5 years. Set it to 30 seconds and you get over 6 years in a typical 20 °C environment. Avoid using the 4-20 mA output in battery mode because the loop current draws an extra 15 mA constantly. That will kill the battery within 6 months. Instead, use the pulse output or wireless M-Bus for data transfer with minimal power draw. We have seen a water utility in Queensland stretch their MAG 8000 battery to 7 years by logging every 60 seconds and turning off the LCD backlight.
When to Use External Power Instead of Internal Battery
If your application demands 1 second data updates or continuous HART communication, order the version with an external DC input. The terminals accept 11.5 to 30 V DC. An external supply also lets you use the 4-20 mA output without worrying about battery life. For underground vaults without AC power, many of our customers in Southeast Asia combine a small solar panel with a 12 V lead-acid battery and a charge controller. T
Field Mistakes We Often See and How to Fix Them
A food processing plant in Mexico recently contacted us because their MAG 8000 battery drained in 3 weeks. The culprit was a programmed interval of 0.5 seconds. Nobody checked the default settings after a firmware update. Another case involved a desalination plant in Saudi Arabia. They installed the meter on a DN200 pipe with only 2xDN straight inlet, right after a butterfly valve. The flow profile was so distorted that the meter tripped an empty pipe alarm every 30 minutes. The fix was to move the meter 8xDN downstream. A paint manufacturer in Vietnam used chemical resistant liners but forgot to specify Hastelloy electrodes. After 4 months, the electrodes corroded and the meter output became noisy.
Replacement Batteries and MAG 8000 Flow Meters from Silver Instruments
Silver Automation Instruments stocks genuine replacement D cell packs and complete MAG 8000 flow meters for fast delivery to Australia, Southeast Asia, and the Middle East. We can also help you size the correct meter and configure the power settings before shipment. Send us your pipe size (DN), fluid type, conductivity, pressure rating, and required logging interval. You will get a quote with battery life estimate within 24 hours. Email: [email protected], Tel: +86-135-1213-1526, Whatsapp: 86-135-12131526, WeChat: +86 13512131526.
Frequently Asked Questions
1. How long does the MAG 8000 battery last?
The battery life depends on measurement interval and temperature. At 15 second intervals and 20 °C, expect 5 to 6 years. Colder temperatures degrade lithium batteries faster. Below 10 °C, life may drop by 15 percent.
2. Can I replace the battery in the field?
Yes. The battery compartment is sealed but accessible. Always replace both D cells as a matched pair and re-grease the O-rings to keep the IP68 rating. Do not mix old and new cells.
3. What is the minimum conductivity for the MAG 8000 to work?
20 µS/cm for standard electrodes. For demineralized water below 10 µS/cm, specify the low conductivity version with special electronics.
4. Does the MAG 8000 support Modbus?
Yes, the meter supports Modbus RTU via RS485 when externally powered. In battery mode, Modbus is not recommended because it draws more power than Wireless M-Bus or pulse output.
5. Can I use the MAG 8000 for seawater or brine?
Yes, with the correct electrode material like Hastelloy C or titanium. Standard 316L electrodes will pit quickly above 30,000 ppm chlorides. Always specify the fluid chemistry when you order.
