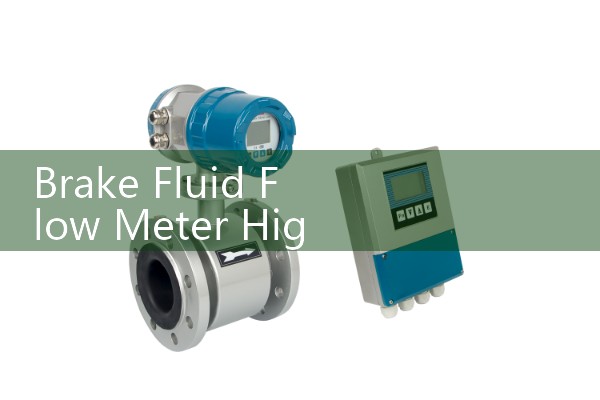

Brake Fluid Flow Meter High-Pressure Leak Detection Rules
Quick Answer
Any flow meter used for brake fluid high-pressure leak detection must hold a pressure rating at least 1.5 times the maximum system pressure. Oval gear and Coriolis meters from Silver Automation Instruments routinely handle 400 bar and can flag a leak smaller than 1 ml/min in a DN15 line. For DOT 3, DOT 4, and DOT 5.1 fluids we recommend our OGM-DT oval gear flow meter with a 4-20 mA HART output wired directly to a safety PLC.
Brake fluid lines in hydraulic brake test rigs and assembly machines operate between 120 bar and 350 bar. A tiny leak that goes unnoticed for one shift can dump 200 ml of fluid, degrade braking force, and create a fire hazard if the fluid reaches a hot exhaust manifold. We have seen this exact scenario at a brake component plant in Thailand last year. Their inline flow meter caught a 0.8 ml/min drift and triggered a line stop before the batch shipped.
The core rule is simple. Mount the flow meter downstream of the pressure intensifier and before the test piece. Measure flow continuously. Set two alarms. One alarm at 0.5 % of full scale that signals an operator to inspect the fixture. A second hard trip at 1 % that shuts the test stand. This isn’t a textbook number. It comes from real test cycles with DOT 4 fluid at 280 bar and 60 °C fluid temperature.
Pressure Rating is Not a Suggestion
A standard oval gear meter with a cast iron body will crack at 60 bar. Brake fluid circuits demand stainless steel 316L bodies and PEEK or tungsten carbide internals. Every Silver Instruments meter built for brake fluid carries a 400 bar static pressure rating and is tested to 600 bar during our in-house FAT. Some customers ask us to supply a burst disc upstream. We recommend that only when the pipe size exceeds DN25 because the trapped volume becomes large enough to risk a pressure spike above 500 bar.
Fluid viscosity changes fast during a leak test. Cold DOT 4 at 10 °C has a dynamic viscosity near 1800 cP. At the test temperature of 60 °C the same fluid drops to 7 cP. A turbine meter loses accuracy across that band. An oval gear meter holds ±0.5 % of reading from 1 cP to 2000 cP because the measuring chamber always captures a fixed volume. In our internal test logs from a brake line supplier in Mexico, the oval gear meter repeated within 0.2 ml in 100 consecutive cycles at 200 bar.
Response Time Dictates Leak Detection Threshold
Most engineers skip this part. A 4-20 mA loop with a 100 ms update rate is fast enough to catch a sudden leak, but the control system must not apply a slow software filter. We set the output damping to 50 ms on our OGM-DT transmitter. At a flow of 0.5 L/min through a DN10 meter, each rotor pulse represents 0.25 ml. A leak that doubles the flow between two pulses shows up in 30 ms. The safety PLC then has a complete scan cycle to react. A paint manufacturer in Southeast Asia validated this exact timing and now detects a loose bleed valve before the pressure drops 5 bar.
Wetted Material and Fluid Compatibility
DOT 5 silicone brake fluids attack standard nitrile rubber seals. DOT 3 and DOT 4 glycol-based fluids swell natural rubber but have no effect on FKM or EPDM. We always request the fluid type and operating temperature range from you. For DOT 5.1 and DOT 5 we install FFKM O-rings and the meter is marked “Si-Fluid” on the nameplate. A water treatment plant in Queensland once ordered a meter without telling us the fluid was a biodiesel blend. The PPS gears swelled and seized after 40 hours. We replaced the internals with 316L stainless steel gears under warranty and added a mandatory fluid questionnaire to every brake fluid order.
ATEX and Hazardous Area Wiring
Brake fluid is classified as a Class IIIA combustible liquid. In a test cell where vapour can accumulate, a spark from a flow meter pickup must be excluded. We su
Calibration and Field Verification Rule
Do not calibrate a brake fluid meter on water. The calibration factor shifts by 0.8 % to 1.2 % when switching from water at 1 cP to brake fluid at 7 cP. We perform factory calibration with a brake fluid simulant that matches the customer’s target viscosity at test temperature. Each meter leaves our Jiangsu workshop with a 5-point calibration certificate traceable to a NIST-correlated oil standard. Field verification uses a graduated cylinder and stopwatch: fill a DN15 meter at 1 L/min for 30 seconds, collect the output, and compare to the transmitter display. Allow ±0.3 % deviation before calling our support engineer.
Recommended Models for Brake Fluid Leak Detection
OGM-DT oval gear flow meter with HART output is the workhorse for 90 % of brake fluid applications. Pipe sizes DN10, DN15, DN20, DN25 cover flows from 0.02 L/min to 12 L/min. Accuracy ±0.5 % of reading. Process connection defaults to G ½” female BSPP but we offer NPT or SAE straight thread adapters at no extra cost.
CMF-010 Coriolis mass flow meter is for ultra-low leak detection below 0.5 ml/min. It measures mass flow directly, independent of viscosity changes. A pressure rating of 250 bar standard, upgradeable to 400 bar with a welded housing. Output includes mass flow, density, and temperature in a single 4-20 mA HART 7 protocol. A R&D lab in Germany uses two CMF-010 meters to compare brake line micro-leakage across different seal designs.
Send us your pressure in bar, temperature in °C, pipe inner diameter in mm, fluid type (DOT 3 / DOT 4 / DOT 5.1 / DOT 5), and full scale flow range. We will return a dimensional drawing, P&ID hookup diagram, and a priced datasheet within one working day. Ask for the brake fluid leak detection application note SIL-AP-BF-2025 to get the complete wiring and PLC logic example.
FAQ
Q: What is the smallest leak a flow meter can detect in a high-pressure brake line?
A: Our OGM-DT oval gear meter with 0.5 % of reading accuracy can reliably flag a 0.5 ml/min shift on a DN15 meter at 1 L/min full scale. With a Coriolis CMF-010 the threshold drops to 0.1 ml/min.
Q: Do I need ATEX certification for a brake fluid test rig?
A: If brake fluid mist can reach a concentration above 25 % of the lower flammable limit, the area classification is Zone 1 or Zone 2. Most indoor test bays fall into Zone 2. Silver Instruments supplies ATEX, IECEx, and EAC certified pickups on request.
Q: Will an oval gear meter work with DOT 5 silicone brake fluid?
A: Yes, as long as the O-rings are FFKM and the housing is 316L. Standard FKM seals swell and fail within days. Always specify the fluid code on the RFQ.
Q: Can I install the flow meter vertically?
A: We recommend a horizontal installation with the meter inlet at the bottom and outlet at the top to avoid air pockets. For space-constrained test benches we offer a vertical version with an internal bypass channel. Mention the mounting orientation in your email and we will include the correct gear plate design.
Q: How often do brake fluid flow meters need recalibration?
A: Under normal use of 8 hours per day with clean brake fluid, our meter keeps its factory calibration for 12 to 18 months. We advise a field verification every 6 months using the graduated cylinder method. If the deviation exceeds 0.5 % we issue an RMA number for factory recalibration at our Sydney or Jiangsu service centres.
